50W Fiber Laser
| Links:
Industrial-grade fiber laser for high-speed metal marking, deep engraving, and color marking on stainless steel.
The 50W Fiber Laser is a high-precision marking system designed primarily for metallic surfaces and certain hard plastics. Unlike CO2 lasers, which use gas, this system utilizes an optical fiber doped with rare-earth elements to produce a high-intensity beam with an extremely small spot size, perfect for permanent industrial marking.
| Category | Specification |
|---|---|
| Laser Power | 50W |
| Laser Source | Raycus / Max Photonics (Fiber) |
| Laser Wavelength | 1064nm |
| Marking Area | 110mm x 110mm (Standard) / 200mm x 200mm |
| Marking Speed | ≤ 7000 mm/s |
| Min. Line Width | 0.01 mm |
| Min. Character Size | 0.15 mm |
| Cooling Mode | Air Cooled |
| Supported Formats | PLT, DXF, AI, DST, BMP, JPG |
| Compatible Software | EZCad 2 / EZCad 3 |
| Input Voltage | 220V / 50Hz |
| Lifespan | ~100,000 Hours |

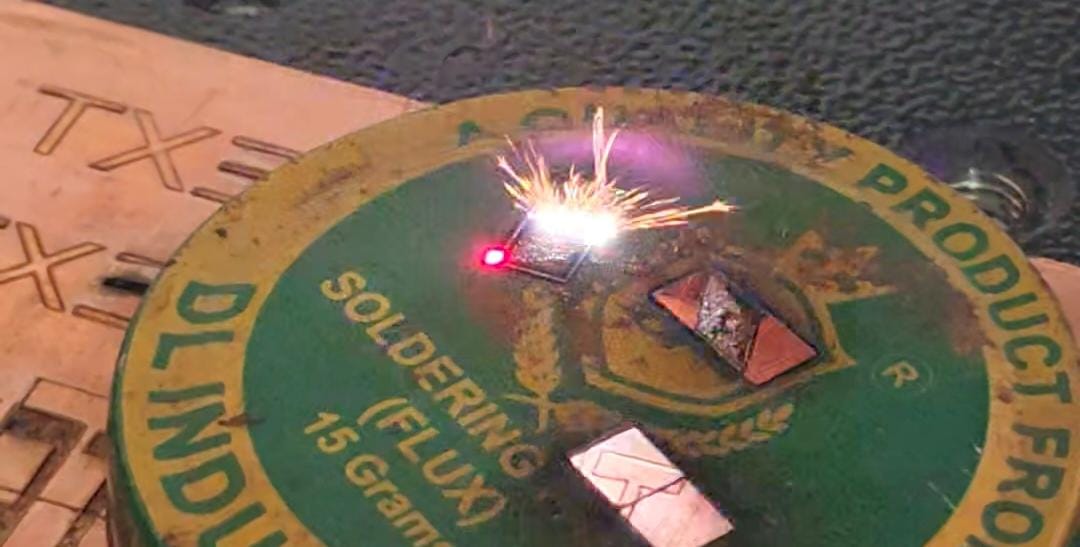

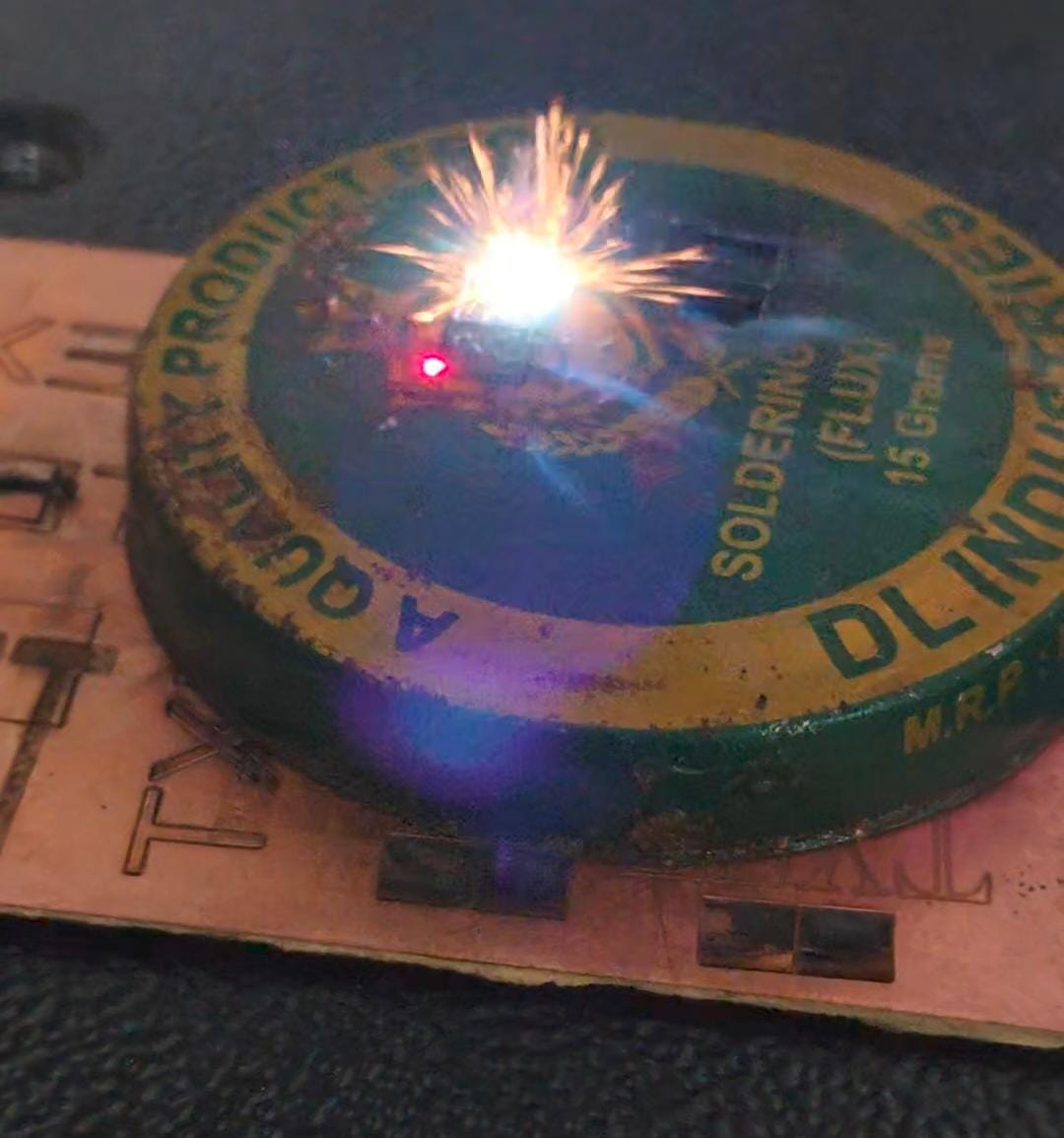

Installed Jan 2026. preliminary testing for using for rapid PCB prototyping.

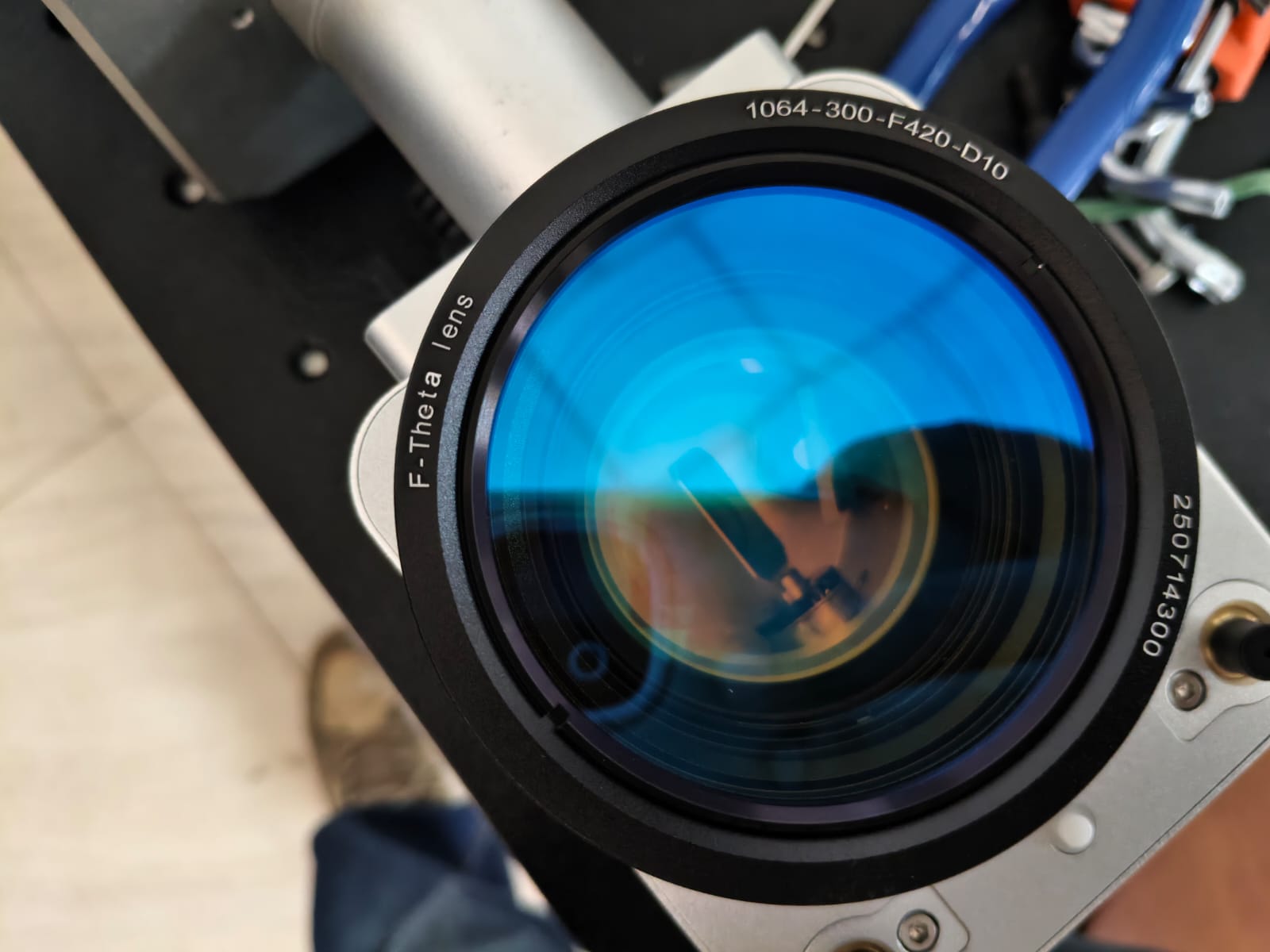

The lens with 110x110mm field
Key Features
- Metal & Hard Plastic Specialist: Excels at engraving Stainless Steel, Aluminum, Brass, Copper, and high-density plastics like ABS.
- Deep Engraving: The 50W power overhead allows for significant material removal, suitable for creating metal molds, stamps, or deep serialization in industrial parts.
- Galvanometer Scanning: Instead of a moving gantry (like the Falcon or P1S), this machine uses high-speed vibrating mirrors to move the beam, achieving speeds up to 7000 mm/s.
- Maintenance Free: The solid-state fiber source requires no mirror alignments or gas refills, offering a massive operational lifespan compared to CO2 tubes.
- Color Marking: Capable of creating various oxide layers on stainless steel and titanium to produce controlled colors (annealing) without removing material.
Material Compatibility Guide
| Material | Capability | Application |
|---|---|---|
| Stainless Steel | Deep Engrave / Color | Nameplates, surgical tools, jewelry. |
| Aluminum | High Contrast | Electronic enclosures, QR codes. |
| Brass / Copper | Deep Engrave | Challenge coins, electrical components. |
| Anodized Metal | Surface Strip | Removing coating for high-contrast logos. |
| Carbon Fiber | Precision Cut/Mark | Aerospace and drone components. |
Safety Warning: Fiber lasers operate at a 1064nm wavelength which is invisible and extremely dangerous to the human eye. OD6+ rated safety goggles must be worn at all times when the machine is energized.
